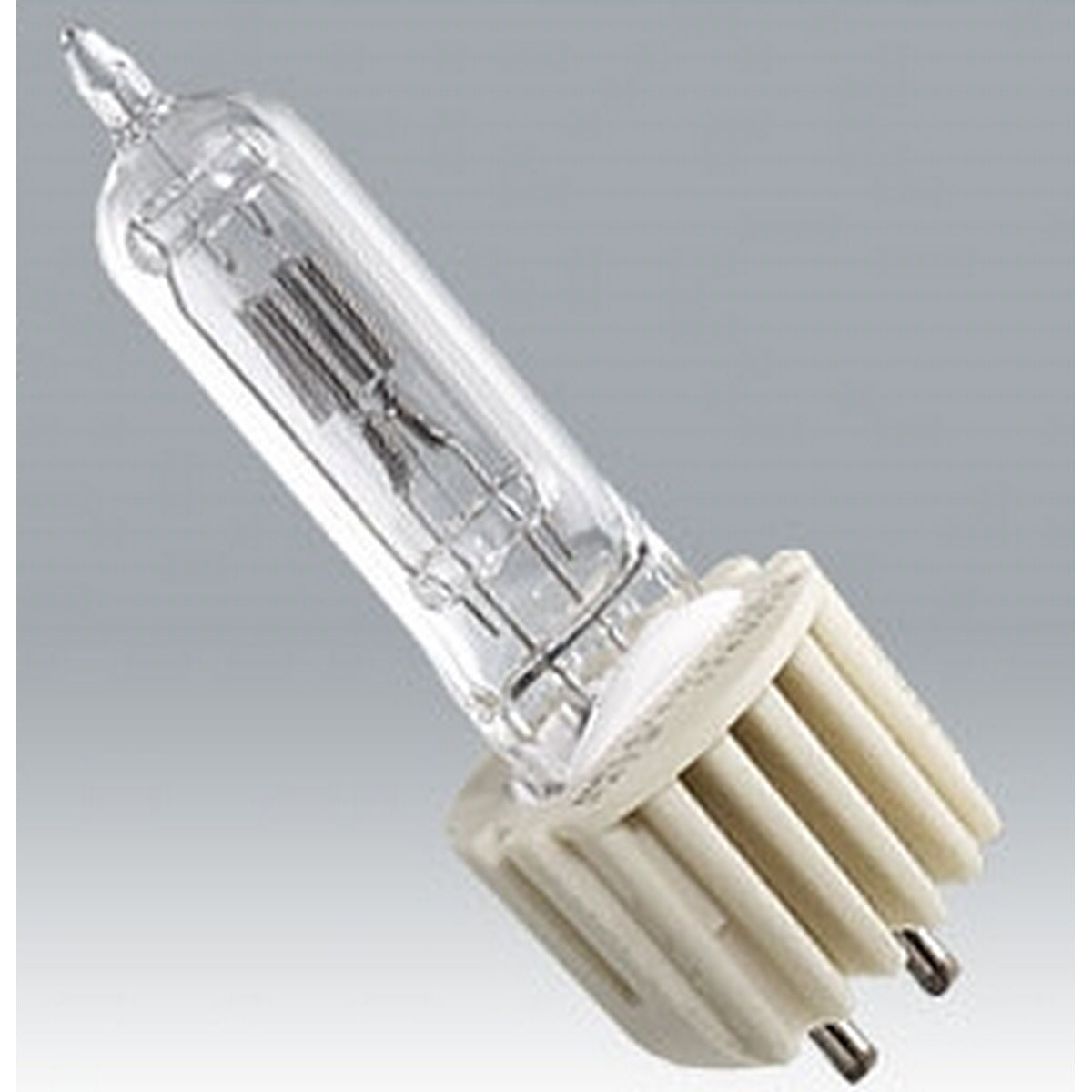

Ushio 1002283 HPL-575/120X JS120V-575WX High Performance Halogen Lamp

Ushio 1002283 HPL-575/120X+ JS120V-575WX High Performance Halogen Lamp

USHIO’s high performance lamp HPL, has been redesigned to be the most powerful HPL ever. It’s ultra-compact filament geometry now improves the optical efficiency of your ETC Source Four™ fixtures to produce up to 20% more fixture lumens. That’s up to 20% more light from the same fixture as compared to the old lamp design. Previously, design of the HPL lamp was limited to larger filament dimensions than USHIO’s HPL+ geometry. Working in close cooperation with ETC’s engineers, Ushio has matched the “innovation” of the Source Four™ fixture by making a more compact (6.0mm x 9.5mm) filament profile. This improvement partnered with the optics of the Source Four™, generate ultimate axial and radial light distribution and optical system efficiency.
The Source Four’s™ precise optics demand precisely engineered lamps. USHIO has responded to the Source Four’s™ need for a reduced geometry filament, and has done so with quality manufacturing standards. Performance you can measure, quality you can count on, variety of lamp types, and innovative design for your theatrical needs.

Key Features

• New ceramic heat sink base maintains its resistance to electric conductivity over the life of the lamp
• Unique compact four & six filament design for more efficient light collection
• Standard and long life versions provide increased light output
• USHIO has the largest selection of voltages and wattages

Technical Specifications

USHIO CODE : 1002283
LAMP SERIES : HPL
PRODUCT ID / ANSI CODE : HPL-575/120X+
DESCRIPTION : HPL-575/120X+, JS120V-575WX
DESCRIPTION 2 : 575W 120V
ITEM MARKET : Stage, Studio & TV
ITEM TYPE : Halogen
PREFIX : HPL
BASE : HT/SNK
VOLTAGE : 120
WATTAGE : 575
BURN POSITION : ANY
BULB SHAPE : T6
BULB FINISH : CLEAR
COLOR TEMP (K) : 3050
EFFICACY (LM/W) : 21.5
FILAMENT : 4-C8
FRONT GLASS COVER : NO
INITIAL LUMENS (LM) : 12360
LUMINOUS FLUX (LM) : 12360
LIFE (HR) : 2000
DIAMETER (MM) : 18.35
MOL (MM) : 104
LIGHT CENTER LENGTH (MM) : 60.3
