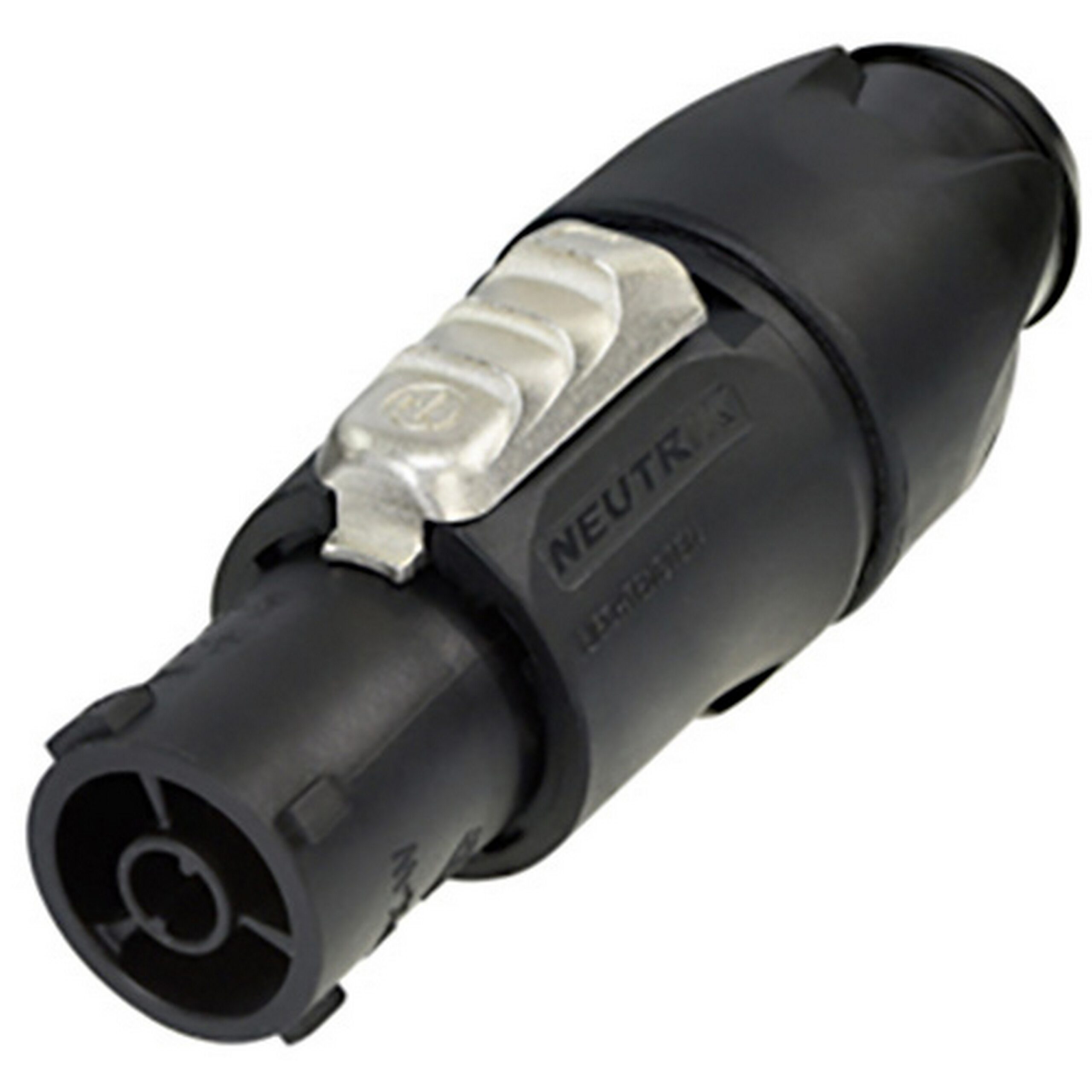

Neutrik NAC3FX-W-TOP-D powerCON TRUE1 TOP Female Cable End Connectors, 50 Pack

Neutrik NAC3FX-W-TOP-D powerCON TRUE1 TOP Female Cable End Connectors, 50 Pack

The NAC3FX-W-TOP-D is a 20 amp Locking female cable connector with screw terminals. The powerCON TRUE1 TOP is a locking 20 Amp true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e., it can be connected or disconnected under load or live.

Key Features

• Heavy duty sealed power connector for harsh and demanding environment
• Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
• Uses high impact UV-resistant materials
• True mains connector with breaking capacity (CBC)
• Lockable 20 A single phase connector (USA: 20 A)
• Easy and reliable twist lock system
• Extremely robust and reliable
• Unique Neutrik cable retention
• ENEC certified according to IEC 60320
• UL498 certified

Technical Specifications

Contact resistance
≥ 3 m OHMS
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0,1 G OHMS (after damp heat test IEC 68-2-30)
Number of electronical contacts
2 + PE
Rated current per contact
20 A rms (USA: 20 A)
Rated voltage
250 V ac
Cable O.D.
6 – 12 mm
Lifetime
> 5000 mating cycles
Wiresize
1.0 – 2.5 mm
Wiresize
12 AWG
Contact plating
2 μm Ag
Contacts
Bronze (CuSn0.2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
ZuAl4Cu1
Shell
Polyamide (PA 6.6 30 % GR)
Strain relief
Polyacetal (POM)
Flammability
UL 94 V-0
Protection class
IP65, UL50E enclosure type 4 (mated)
Temperature range
-30 Degrees C to +80 Degrees C
