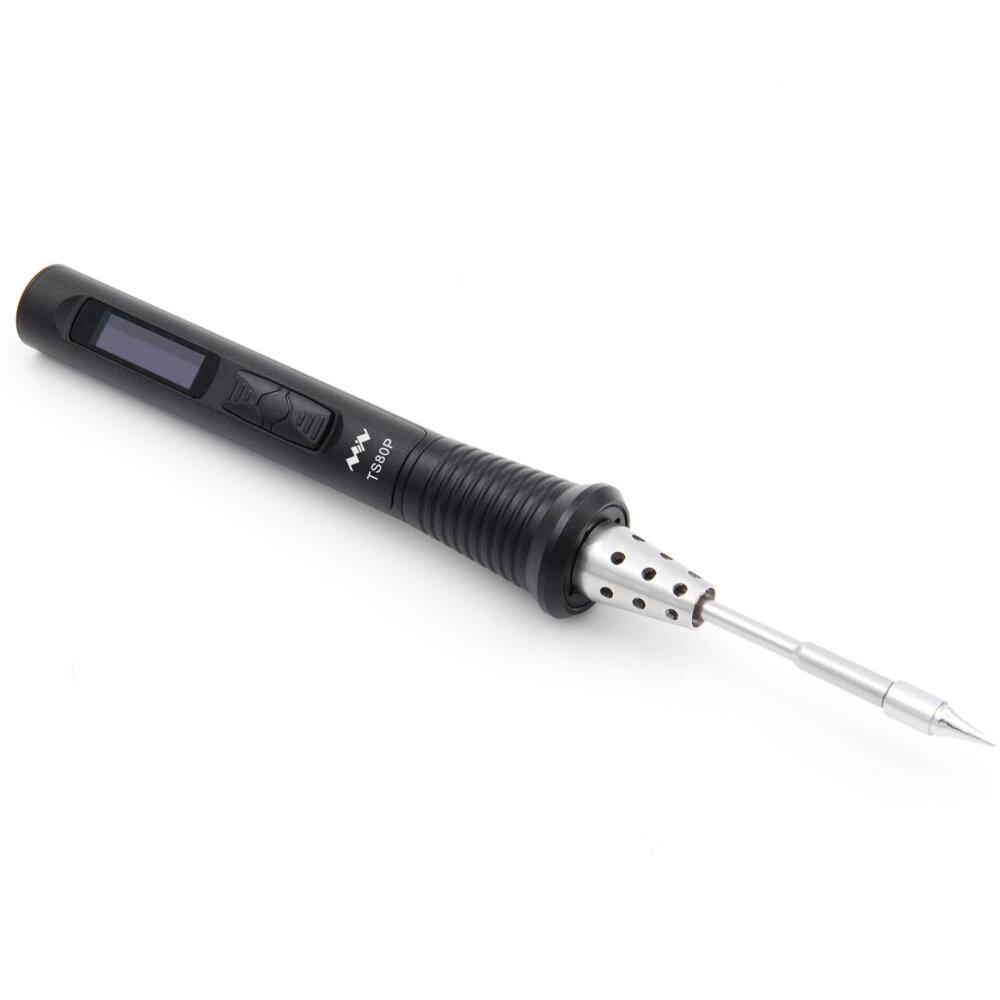

Name: Miniware TS80P Smart Soldering Iron
SKU: bjdxq1m
Availability: InStock

Are you looking to buy a TS80P Soldering Iron in Australia?

TS80P is the upgrade version of TS80 Smart Soldering Iron.

If this product is out of stock you may want to check out the TS80P More Kit instead.

TS80P is a smart soldering iron powered by USB Type-C PD2.0/QC3.0 standard input, which can be powered by charging plugs, power banks and mobile power supplies that comply with PD2.0 (12V 2.5A)/QC3.0 (9V 2A) standard. Its output power has been increased from 18W to 30W max, with an 8-second heating time at fastest from room temperature to 300℃, meeting a wider range of soldering. For Portable soldering we recommend a compatible USB-C Compatible power bank to go with it. If you are after a US Power adapter please view the TS80P More Package instead TS80P controller is made of aluminum alloy through CNC into a compact structure and high-tech design, ergonomic, beautiful and fashionable. The controller is also equipped with an OLED screen, so that you can monitor the status of the soldering iron at any time. Moreover, it features a brand new easy-push tip fastener, which provides a best holding experience and an easy push to loosen the soldering tip for quick replacement. With a built-in STM32 chip, TS80P can smartly control the rise and fall of tip temperature, and features sleep, automatic power-off, safety protection and other modes. The code application layer is open source; you can develop firmware for the soldering iron freely as needed. TS80P shares the same tips with TS80. The soldering tip has an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of soldering tip, achieving an excellent temperature control performance.

Please note that the USB-C power bank we are suggesting is only 18w MAX which is more the sufficient for most RC Hobby Soldering. If you require more power for large battery terminals and other industry cases you may need a 30W power bank and please note these generally are over $100 in value for a 12v 3A compliant powerbank.

FEATURES

OLED screen, full body CNC aluminum alloy casing
USB Type-C 0/QC3.0 standardinput
Power increased from 18W to 30W max
Only 8s to heat from room temperature to 300℃
Brand new easy-push tip fastener, one push to loosen tips
Builtin smart chip for Port Protection
Share same tips with TS80

SPECIFICATIONS

Temperature Range: 100℃- 400℃(Max)
Input: 9V/2A (QC 3.0)/ 12V 2.5A（PD2.0）
Power: 30W Max
Fastest heating time (from room temperature to 300℃): 8s
Data/Power Interface: USB Type-C
Temperature stability: ±3%
Display: OLED
Length: controller: 96mm; tip: 100mm(60+40mm)
Weight: 38g (power adaptor not included); Tip: 14g (B02 tip)
Certifications: CE, FCC

Package Includes

You may want to add the following accessories

Carrying Case – For Iron protection and transport
Solder Pig – For cleaning your tip
Miniware M-Stand – Budget Stand
Miniware T-Stand – High Quality Ceramic Stand for your Iron
DC5525 Cable – For powering iron via lipo or other means.
Power Bank – For powering your Soldering Iron
FLUX – For making soldering cleaner/easier and neater. It stops solder wicking up and helps heat up pads faster.
Solder 0.5mm
Solder 0.8mm
USB-C Power supply – Cheap and high powered but has US plug
The Jigs Up – The Best Soldering Jig EVER!
or
Budget Soldering Holder Set
Silicon Soldering Mat
Practice Soldering Board – Practice your soldering if you are new to it
Soldering Microscope with HD Screen

B02 Soldering Tip
BC02 Soldering Tip
D25 Soldering Tip
K4 Soldering Tip
J02 Soldering Tip
