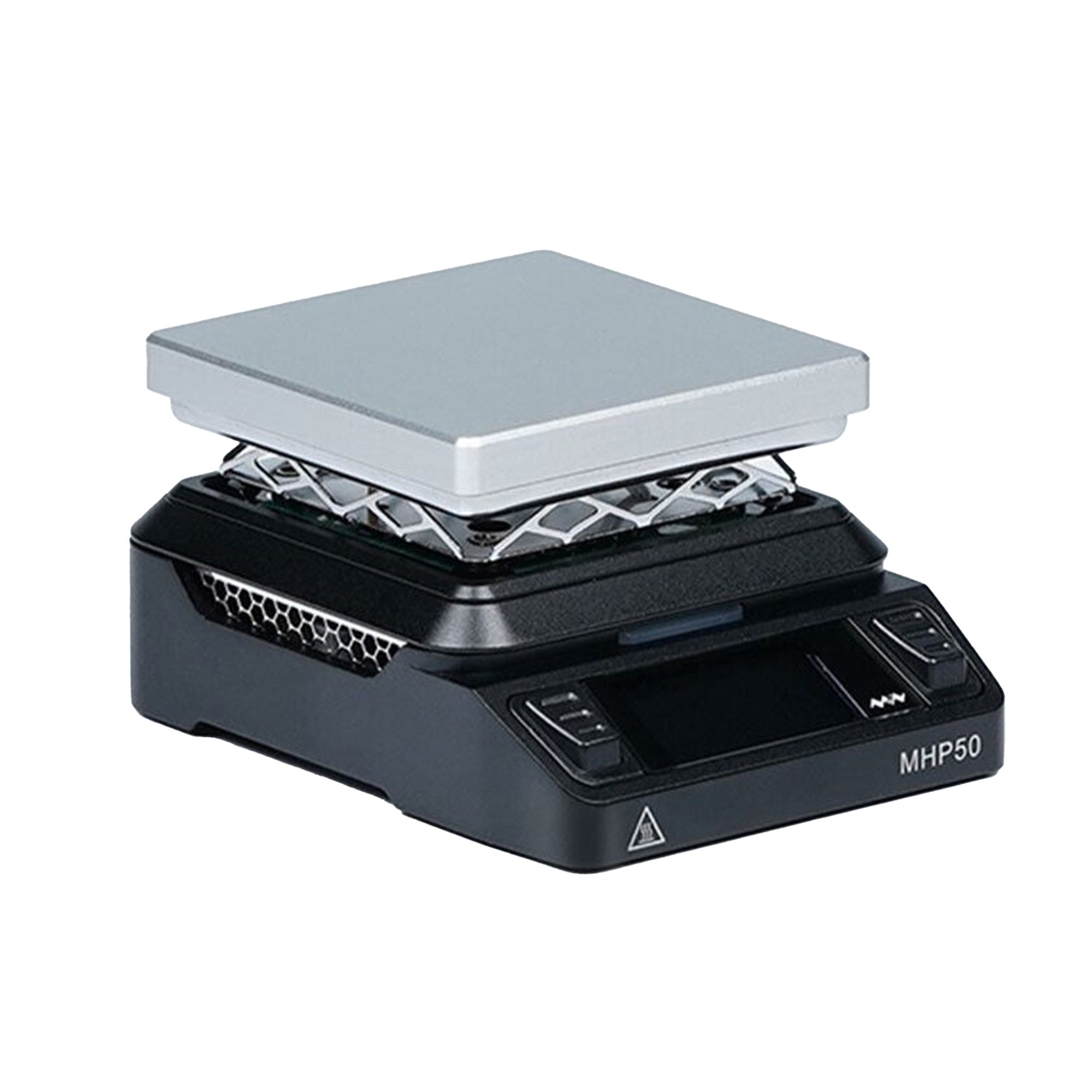

Miniware MHP50 Mini Hot Plate Preheater

Upgrade your electronics toolkit with the Miniware MHP50, the latest in precision heating technology. Building on the success of the MHP30, the MHP50 features a higher power output and a larger heating surface, making it perfect for a wide range of soldering and heating applications.

With enhanced temperature control, a user-friendly digital interface, and advanced safety features, the MHP50 ensures accurate and stable heating for delicate components. Its compact and portable design allows you to bring professional-grade heating capabilities wherever you go.

Whether you’re a hobbyist or a professional, the Miniware MHP50 is your go-to solution for reliable, efficient, and precise heating.

Features

• Higher power output for faster heating
• Larger heating surface for versatile applications
• Precise temperature control with digital display
• Advanced safety features including overheat protection
• Compact, portable, and user-friendly design
• The choice of two hot plates with different heating materials
• Multi-smart modes, including heating curves and preset temps

Specifications

• Model: MHP50
• Hot plate model: AL50 (aluminium) / BS50 (brass)
• Heating surface area: 50mm x 50mm
• Temperature range: 100-350ºC
• Temperature stability: ±3%
• Input voltage (use only one input): DC 19-24V / PD 20V
• Max power: DC5525 12-24V 150W or PD 20V 100W
• Size:
  • Controller: 71.5mm*W55.5mm*H22.5mm
  • Hot plate: L50mm*W50mm*H29mm
• Weight:
  • Controller: 78g
  • AL50: 60g
  • BS50 87g
• Smart modes: preset temperatures, heating curves, overturn protection, brightness adjustment, firmware upgrade

Includes

• MHP50 Controller and Hot Plate
• Silicone USB C Cable (20V 5A)
• User manual

*Note that a 20V 5A USB PD power supply isn’t included. You’ll need a 100W ‘laptop’ power supply with USB Type-C PD support.
