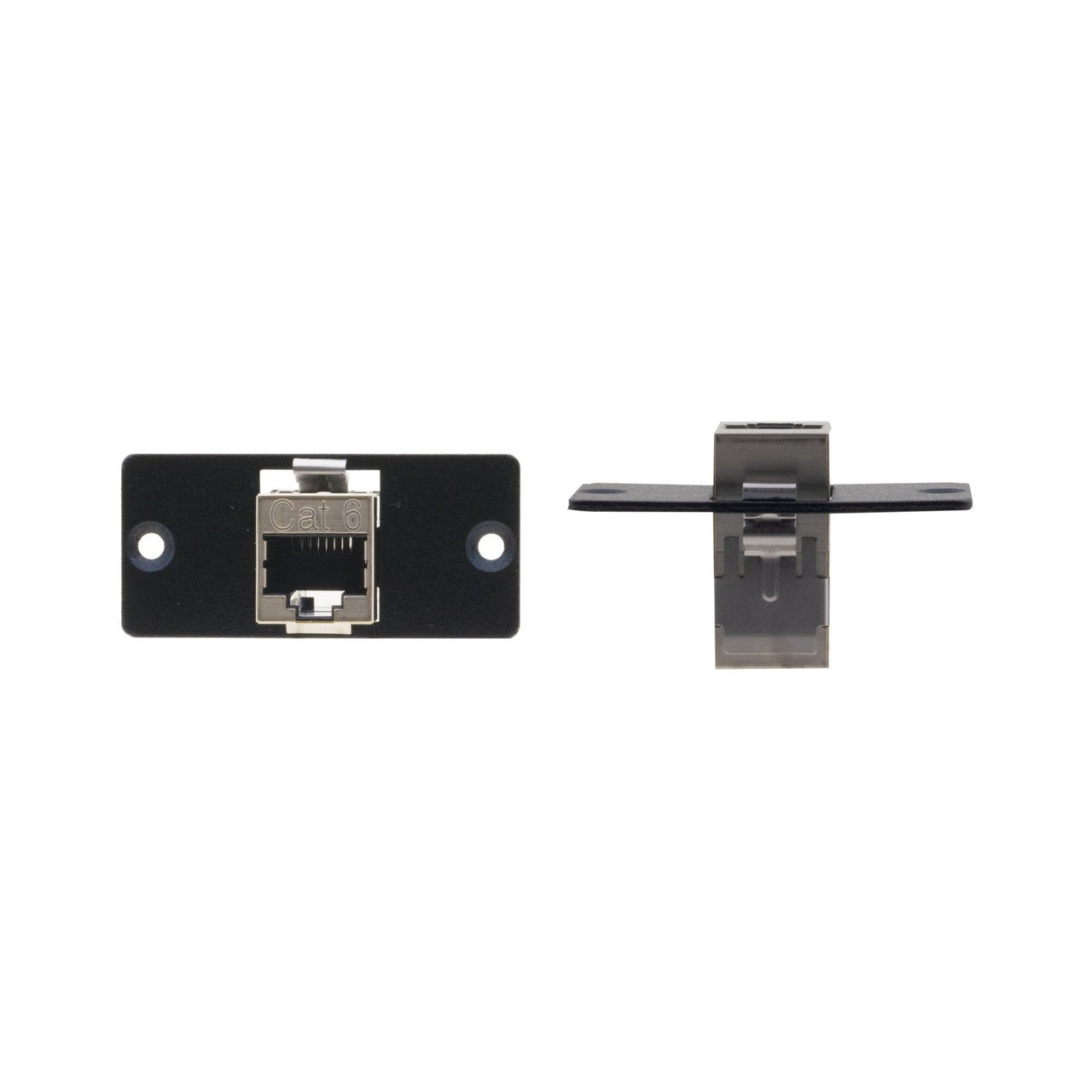

Kramer W-45 Wall Plate Insert RJ-45, Black

Kramer W-45 Wall Plate Insert RJ-45, Black

Ethernet Wall Plate Insert

Key Features

• Front Panel Connections – 1 RJ-45 CAT6.
• Rear Panel Connections – 1 RJ-45 CAT6.
• Standards Compliance – Permanent Link/Channel of TIA/EIA-568-B.2 Cat.6, ISO/IEC 11801, Cenelec EN 50173, IEC 60603-7, PoEP in accordance with IEEE 802.3at.
• Size – Single slot wall plate insert.

Technical Specifications

INPUTS
1 Cat 6 Ethernet
On a female RJ-45 connector
OUTPUTS
1 Cat 6 Ethernet
On a female RJ-45 connector
ENCLOSURE
Size
Single insert
Material
Aluminum
STANDARDS COMPLIANCE
Communication and Electrical
Permanent Link/Channel of TIA/EIA-568-B.2 Cat.6, ISO/IEC 11801, Cenelec EN 50173, IEC 60603-7, PoEP in accordance with IEEE 802.3at
Safety
CE
PRODUCT DIMENSION
5.05cm x 2.00cm x 2.34cm (1.99″ x 0.79″ x 0.92″ ) W, D, H
SHIPPING DIMENSION
12.60cm x 8.40cm x 4.10cm (4.96″ x 3.31″ x 1.61″ ) W, D, H
SHIPPING WEIGHT
0.1kg (0.2lbs) approx.
