Grove – LED Strip Driver

DESCRIPTION

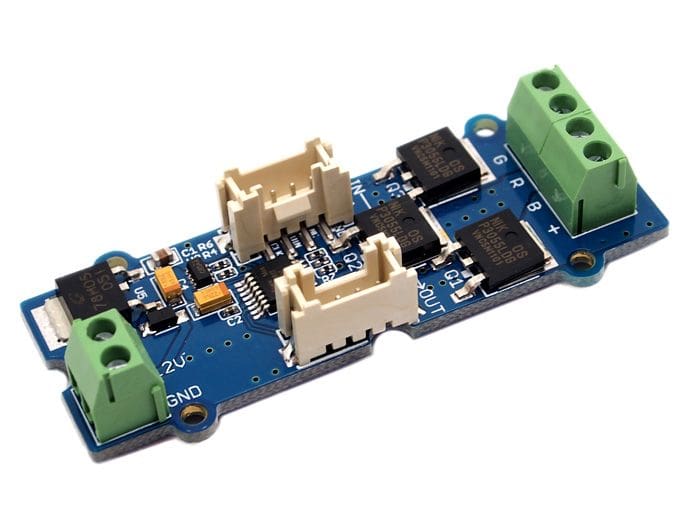

The LED Strip Driver with a 4-pin Grove interface provides easy connectivity to your standard Arduino device or Seeed Stalker. It can help you control the luminance of a single-colour LED strip, as well as the colour and the luminance of an RGB LED strip through Arduino or Seeeduino.

It has 2 terminals and 2 Grove interfaces. The power for the LED strip comes in through the 2-pin terminal. And the LED controls voltage output through the 4-pin terminal. The 2 Grove interfaces are respectively screen-printed “IN” (for controlling data input) and “OUT” (for controlling data shared with the next strip driver).

It can drive an LED strip 1 to 2 meters long with 9 V, while 1 to 5 meters long with 12 V.  The driver in conjunction with the colourful LED strips can add a wonderful effect to indoor or outdoor usage.

FEATURES

• Grove compatible interface
• Can be cascaded for a larger display
• Best results were achieved with LED strips 5 meters long or shorter
• Outputs PWM signals
• 256 grey levels are adjustable via programming
• Arduino and MEGA compatible
• Screw Terminals (power input and control signal output interface)

RESOURCES

• Introduction to Grove
• Preface – Getting Started
• Wiki
• Schematic V1.2 (PDF)
• Suli Library
• LED Strip Driver library
• LED Strip driver eagle files V1.2
• N-MOSFET DMN3016LK3 Datasheet
• P9813 Datasheet
