DIY Magnetic Connector – Right Angle Five Contact Pins

DESCRIPTION

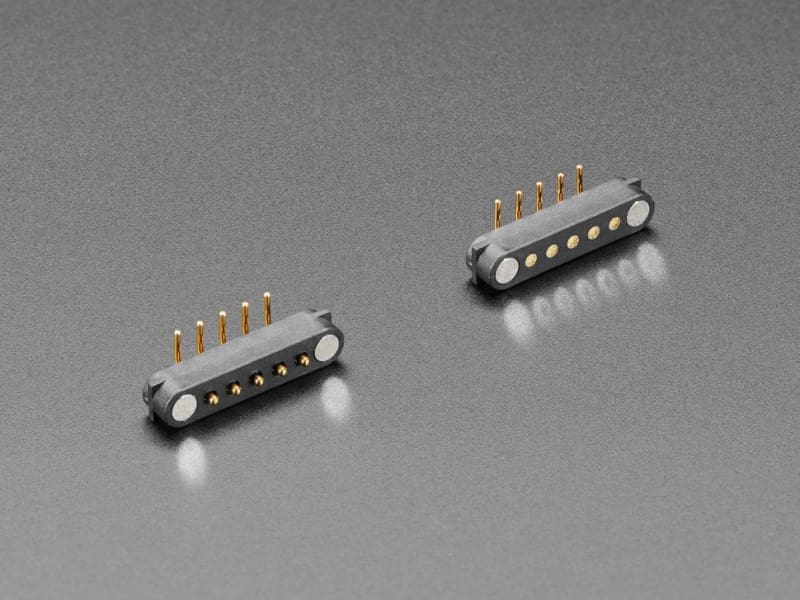

Want to add something new and futuristic to your next project, or a way to quickly break or make contacts? you can now experiment with these magnetic connections! It’s sorta like a DIY “MagSafe-styled” connector, with five 0.1″ spaced contact pogo pins and a right angle solderable connection to your PCB.

Bring the two halves together and the embedded magnets attract, making a firm connection and assuring that all the pogos make contact. If you try to connect the contacts backwards, they will repel!

Use it for power, data, and maybe a magnetic STEMMA QT or USB connector? – whatever you wish! Comes with two halves that, of course, match up nicely

RESOURCES

• Diagram 1
• Diagram 2
