The Versatile Atlona AT-OCS-900N for Efficient AV Automation

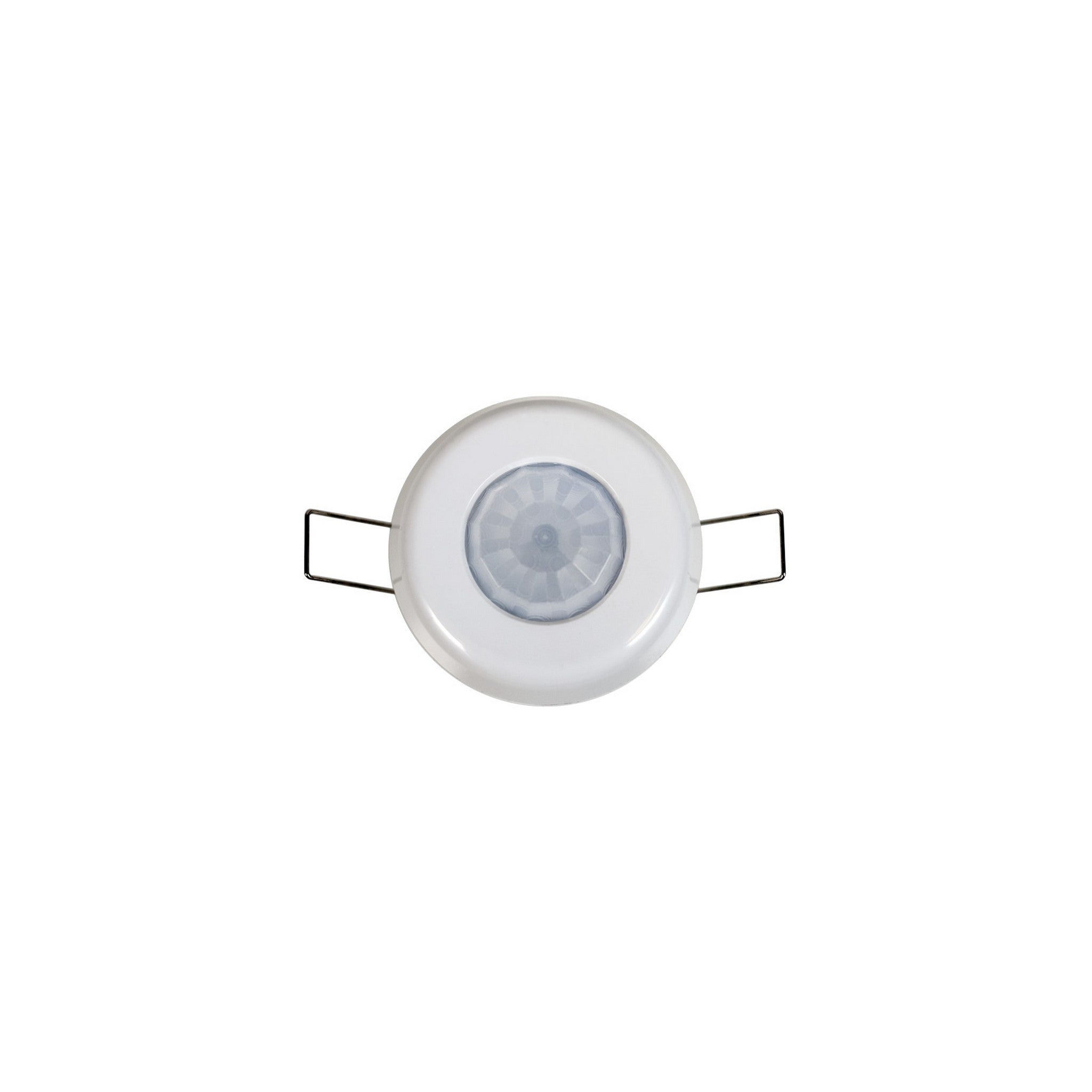

The Atlona AT-OCS-900N is a network-enabled sensor that boasts multi-functionality and is perfect for various AV automation scenarios. The sensor uses passive infrared (PIR) technology to detect room occupancy, communicating with select Atlona products over the network to control AV components automatically.

AV System Automation
The AT-OCS-900N is a compatible partner for the AT-WAVE-101, AT-OME-MS52W, AT-OME-MS42, AT-OME-MH21-CP, AT-OME-MH21, AT-UHD-SW-510W, or Velocity. It facilitates AV system startup or shutdown according to room occupancy.

Multi-function and Open Protocols
Aside from detecting occupancy, the OCS-900N is a multi-functional device that also captures temperature and ambient light levels, and transmits the information to Atlona products and third-party systems via common protocols such as UDP, TCP, WebSocket, and MQTT.

Customization and Straightforward Installation
The device includes two lenses that provide coverage for 900 ft2 (83.6 m2) or 2,000 ft2 (185.8 m2) depending on ceiling height, and a blinder insert to prevent unwanted detection from cross-traffic. You can customize the LED lights to differentiate the device from other equipment in the ceiling. The device’s single PoE connection provides both communication and power, and its self-contained spring-loaded clamps ensure a secure installation into a ceiling tile.

Key Features

• The Atlona AT-OCS-900N is a versatile sensor designed for AV automation applications.
• It utilizes passive infrared (PIR) technology to detect occupancy in the coverage area.
• The sensor communicates with select Atlona products over the network to control AV components automatically.
• It has the capability to detect occupancy, temperature, and ambient light level.
• The sensor is IP-enabled, allowing it to communicate state information over Ethernet.
• It is compatible with WAVE, Velocity, and Omega products, enabling system operation automation.
• The sensor supports network communications with third-party devices using common protocols.
• The detection area of the sensor can be customized, covering a range from 900 ft2 (83.6 m2) to 2,000 ft2 (185.8 m2).
• It is a network-enabled multi-function sensor that offers a wide range of applications in AV automation.
• The sensor’s passive infrared technology ensures accurate occupancy detection for efficient control of AV components.

Technical Specifications

Motion Sensor
Detection
PIR (Passive Infrared)
Coverage Area
900 ft2 (83.6 m2), 2000 ft2 (185.8 m2) with accessory lens
Coverage Pattern
360°
Ambient Light Sensor
Range
0 to 65535 lux
Color Spectrum
RGBW, 16-bit
Ethernet
Port
1 x RJ45
Standards and Protocols
MQTT, JSON over WebSocket, mDNS, HTTP/TLS, TCP, UDP
Speeds
10/100 Mbps
Addressing
DHCP, Static
LED Indicators
Motion Detection
4 – LED, configurable (inner/outer illumination)
Connectors
LAN
1 – RJ45, female
Power
Consumption
1.1 W
PoE
802.3af
Dimensions (H x DIA)
Inches
Unit
2.13 x 2.90
Weight
Ounces
Device
2.11
Certification
Device
CE, FCC, UL 916 file no. #E524557, UKCA
Compliance
NDAA-899
Yes
Warranty
Device
3-year limited
